Heavy duty castor wheels are essential components used to move heavy equipment, machinery, industrial trolleys, and material handling systems safely and efficiently.
Designed to support substantial loads and withstand demanding working conditions, these wheels help businesses improve mobility, reduce manual handling, and increase workplace productivity.
Available in different sizes, materials, and mounting configurations, heavy duty castor wheels are widely used in manufacturing facilities, warehouses, workshops, hospitals, and logistics centers. Understanding their load capacity, types, and applications helps businesses select the right castors for their operational needs.

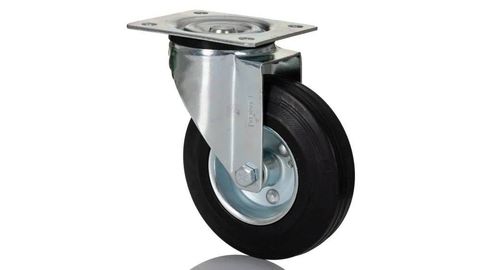

What Are Heavy Duty Castor Wheels?
Heavy duty castor wheels are robust wheels fitted into a supporting assembly that allows equipment or structures to move across a floor. Depending on the design, castors can swivel to provide directional flexibility or remain fixed to support straight-line movement.
These castors are generally manufactured using durable materials such as polyurethane, nylon, rubber, cast iron, and forged steel. Their construction may include reinforced brackets, heavy-duty bearings, and strong mounting plates to support demanding industrial applications.
Heavy duty castor wheels are commonly installed on industrial carts, machinery bases, material handling equipment, and storage racks. The appropriate design depends on the load, floor surface, operating environment, and required maneuverability.
Understanding Heavy Duty Castor Wheel Load Capacity
Load capacity is one of the most important factors when selecting heavy duty castor wheels. It indicates the maximum weight a castor is designed to support under specified operating conditions.
The required capacity depends on the total loaded weight of the equipment, the number of castors, load distribution, and the possibility of uneven floors or impact loads.
A basic calculation for four castors is:
Required capacity per castor = Total loaded weight รท 3
For example, if a trolley and its contents weigh 900 kg, dividing the total weight by three gives a minimum target of 300 kg per castor. This three-castor method allows for the possibility that an uneven floor or load distribution may leave only three castors carrying the weight effectively.
This is a general selection guideline, not a substitute for the manufacturer's ratings. Dynamic loads, shock, speed, temperature, and floor conditions may require additional capacity. Always check the manufacturer's specifications and applicable safety requirements before installation.
Types of Heavy Duty Castor Wheels
Different castor designs offer specific advantages depending on the equipment and operating environment.
1. Swivel Heavy Duty Castors
Swivel castors rotate around a vertical axis, allowing equipment to turn and maneuver in tight spaces. They are suitable for industrial trolleys, mobile workstations, and material handling carts that frequently change direction.
2. Fixed Heavy Duty Castors
Fixed castors move in a straight line and provide stable directional control. They are commonly paired with swivel castors to balance maneuverability and stability in industrial applications.
3. Polyurethane Castor Wheels
Polyurethane wheels combine durability, good load-bearing performance, and relatively quiet operation. They often provide better floor protection than hard metal wheels and are suitable for warehouses, factories, and distribution centers.
4. Nylon Castor Wheels
Nylon castors are lightweight, wear-resistant, and suitable for many demanding applications. They perform well on smooth, hard floors but may produce more noise and transmit greater vibration than softer wheel materials.
5. Cast Iron and Steel Castor Wheels
Cast iron and steel wheels are designed for particularly demanding environments where high load capacity and resistance to certain forms of mechanical wear are important. They are commonly used with heavy machinery and industrial equipment, although their suitability depends on the floor surface and operating conditions.
6. Rubber Castor Wheels
Rubber castors provide shock absorption, quieter movement, and improved traction on many surfaces. They are useful when protecting sensitive equipment or reducing noise is a priority, provided the selected rubber compound meets the required load and environmental specifications.
Industrial Applications of Heavy Duty Castor Wheels
Heavy duty castor wheels support mobility across many industries.
Manufacturing facilities: They are used on machinery bases, production carts, assembly stations, and equipment that must be repositioned during manufacturing processes.
Warehouses and logistics: Heavy duty castors help move loaded trolleys, picking carts, storage units, and material handling equipment between operational areas.
Automotive workshops: These wheels support engine stands, tool cabinets, vehicle component carts, and equipment used during maintenance and assembly.
Construction and engineering: Heavy-duty mobile platforms and industrial equipment may use reinforced castors to simplify positioning and movement, subject to load and ground conditions.
Healthcare and laboratories: Specialized castors can be used on equipment carts and mobile storage systems where smooth movement, low noise, and easy cleaning are important.
How to Choose the Right Heavy Duty Castor Wheels
Choosing the correct castor requires more than checking its maximum load rating. Consider the following factors before purchasing:
Load capacity: Calculate the total operating weight and select an appropriate rated capacity with a suitable safety margin.
Wheel material: Match polyurethane, nylon, rubber, or metal wheels to the floor surface, load, and operating environment.
Wheel diameter: Larger wheels generally roll more easily over small obstacles and uneven surfaces.
Mounting type: Check whether a top plate, threaded stem, or another mounting arrangement is compatible with the equipment.
Braking system: Total-lock or wheel brakes can help prevent unwanted movement when equipment is stationary.
Environmental conditions: Consider moisture, chemicals, temperature, corrosion, and exposure to debris.
Movement requirements: Choose swivel, fixed, or a suitable combination based on the required turning ability and directional stability.
Regular inspection and maintenance are also important. Check wheels, bearings, mounting hardware, and brakes for wear or damage, and replace components when necessary.
Conclusion
Heavy duty castor wheels are important for moving heavy loads efficiently and safely across industrial and commercial environments. Their performance depends on load capacity, wheel material, construction, mounting configuration, and floor conditions.
By understanding the different types of heavy duty castors and evaluating the requirements of each application, businesses can improve equipment mobility, reduce manual handling, and support smoother material handling operations. Selecting properly rated wheels and maintaining them regularly can also contribute to reliable performance and longer service life.
